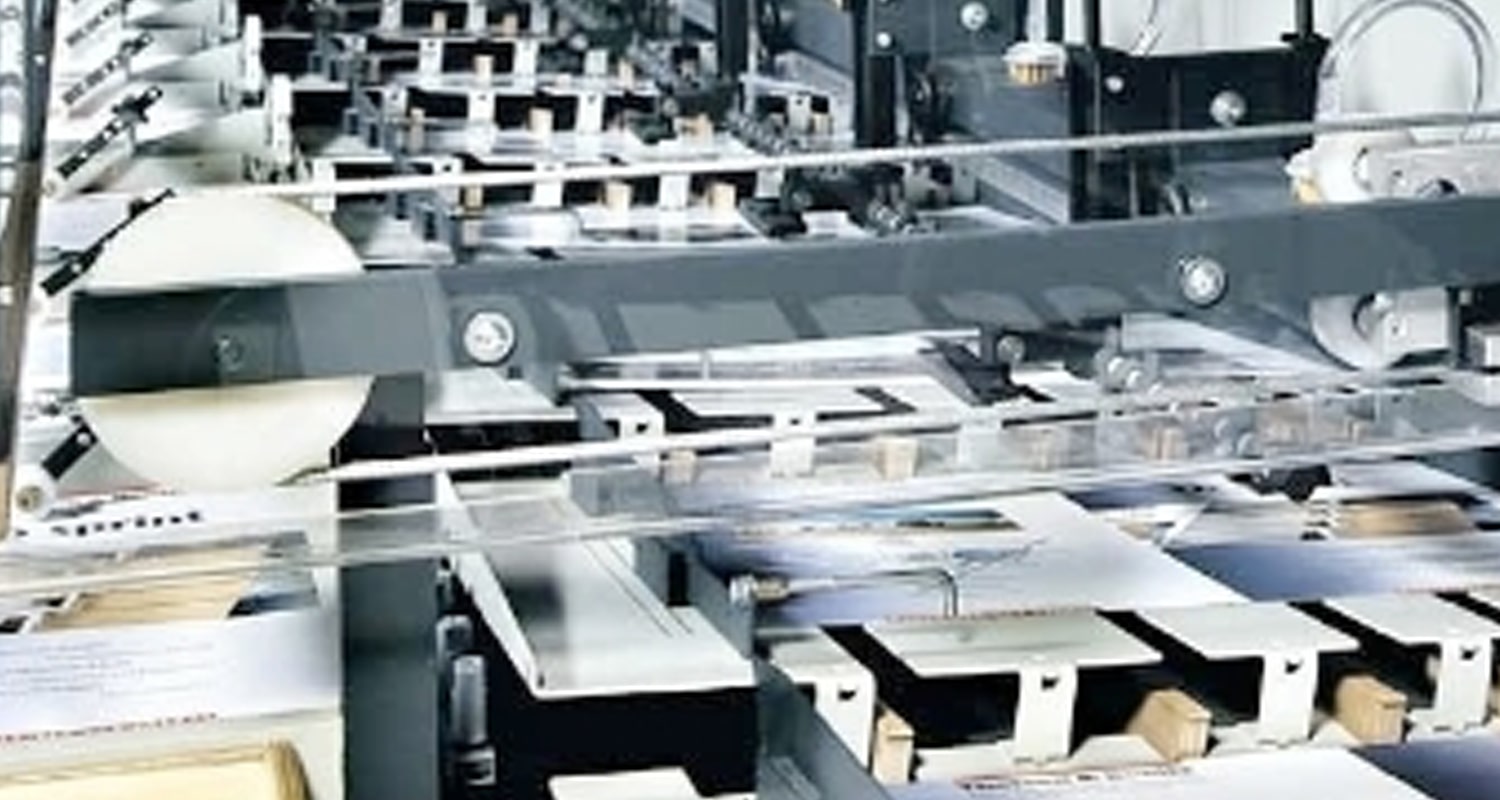

TB Sprint – The Allround-System

With scale transport technique, the paper is aligned cycle by cycle at the left, headside edge. Hereby also different formats can be collated in the jogger for normal and criss-cross delivery in one course of manufacture. The tb sprint collator is combined by a jogger bridge to the connected machine. This means converting in seconds for changing e. g. from collating to brochure finishing. A new alignment of the machines is not necessary.

Characteristics

  • Programmable, automatic start and run off

  • Latest control technology

  • Automatic missed sheet repeat

  • Criss-cross in the jogger after cycle preselectio

Technical Data & Range

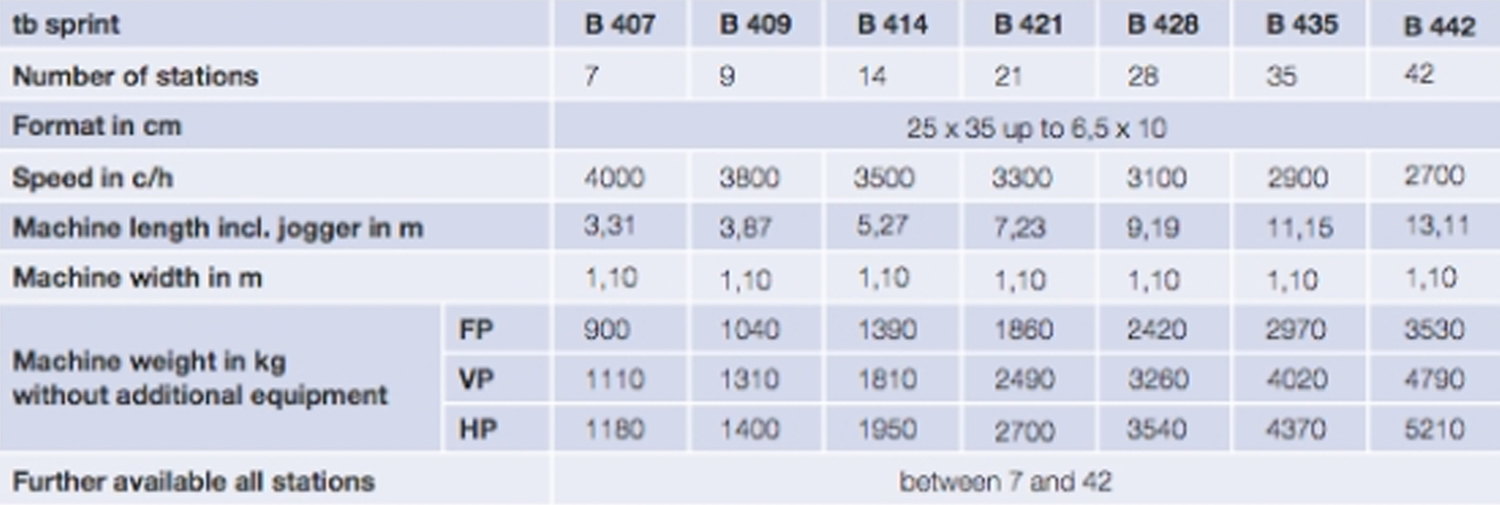

B4 Format (25 x 35cm)

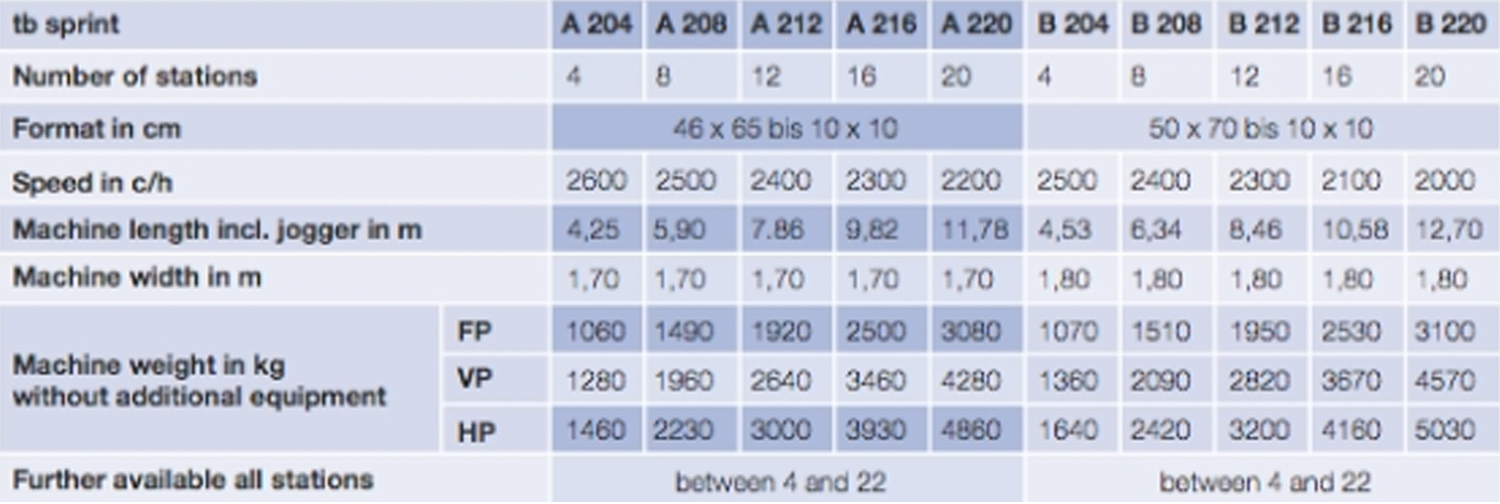

A2 Format (46 x 65cm), B2 Format (50 x 70cm)

Standard colours: Grey (RAL 7039), Red (RAL 3016), Blue (RAL 5009),

Special formats and combined pile versionson request. Subject to alterations

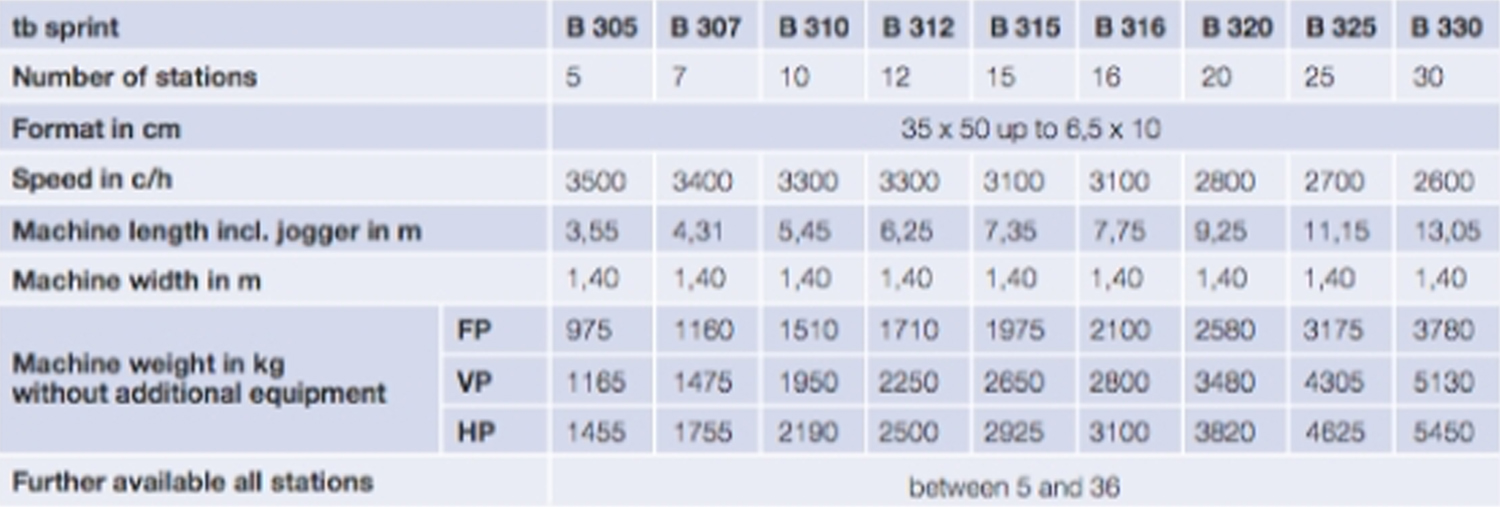

B3 Format (35 x 50cm)
